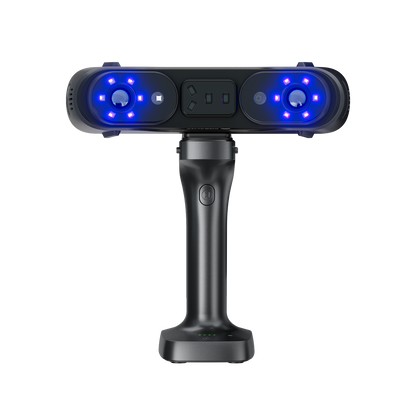

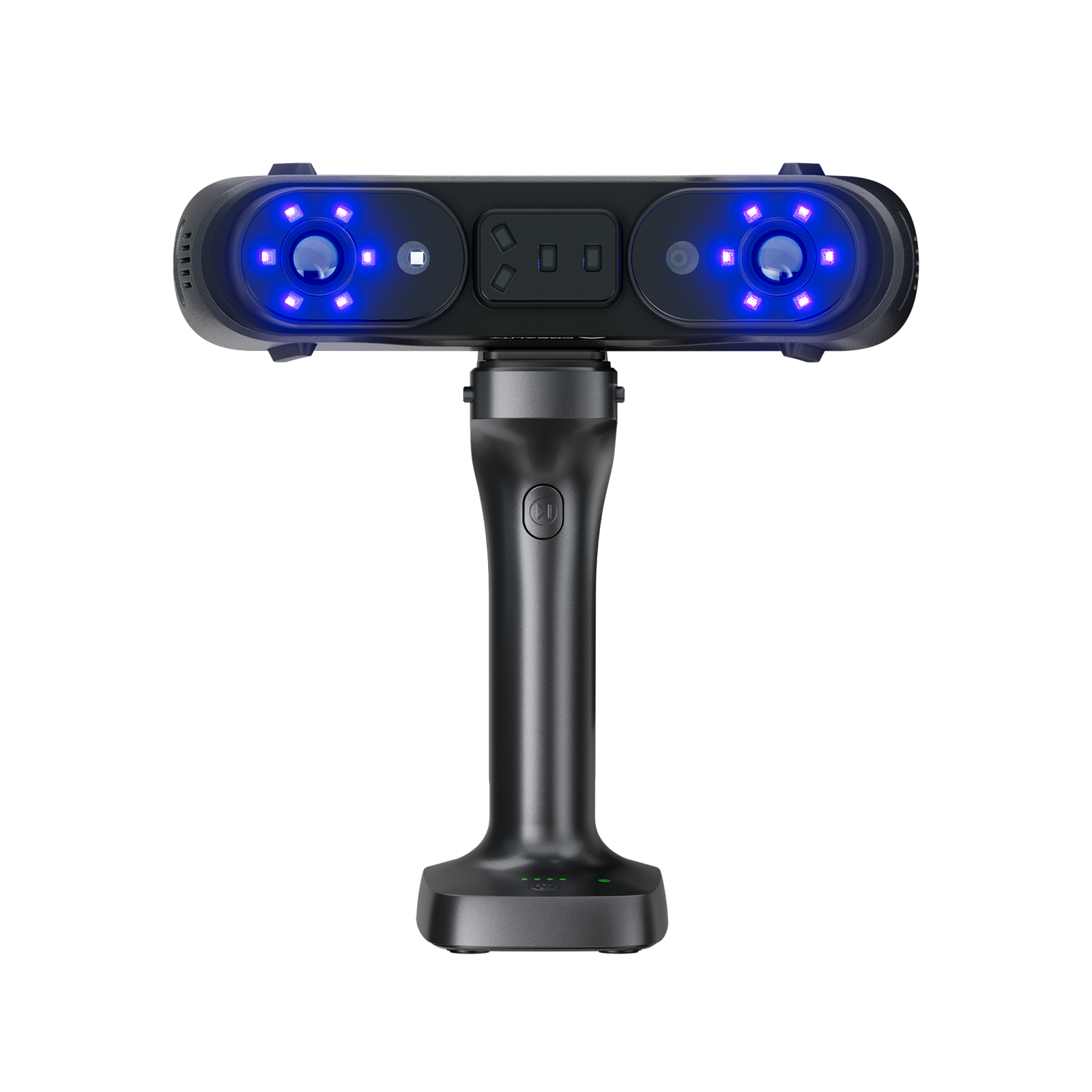

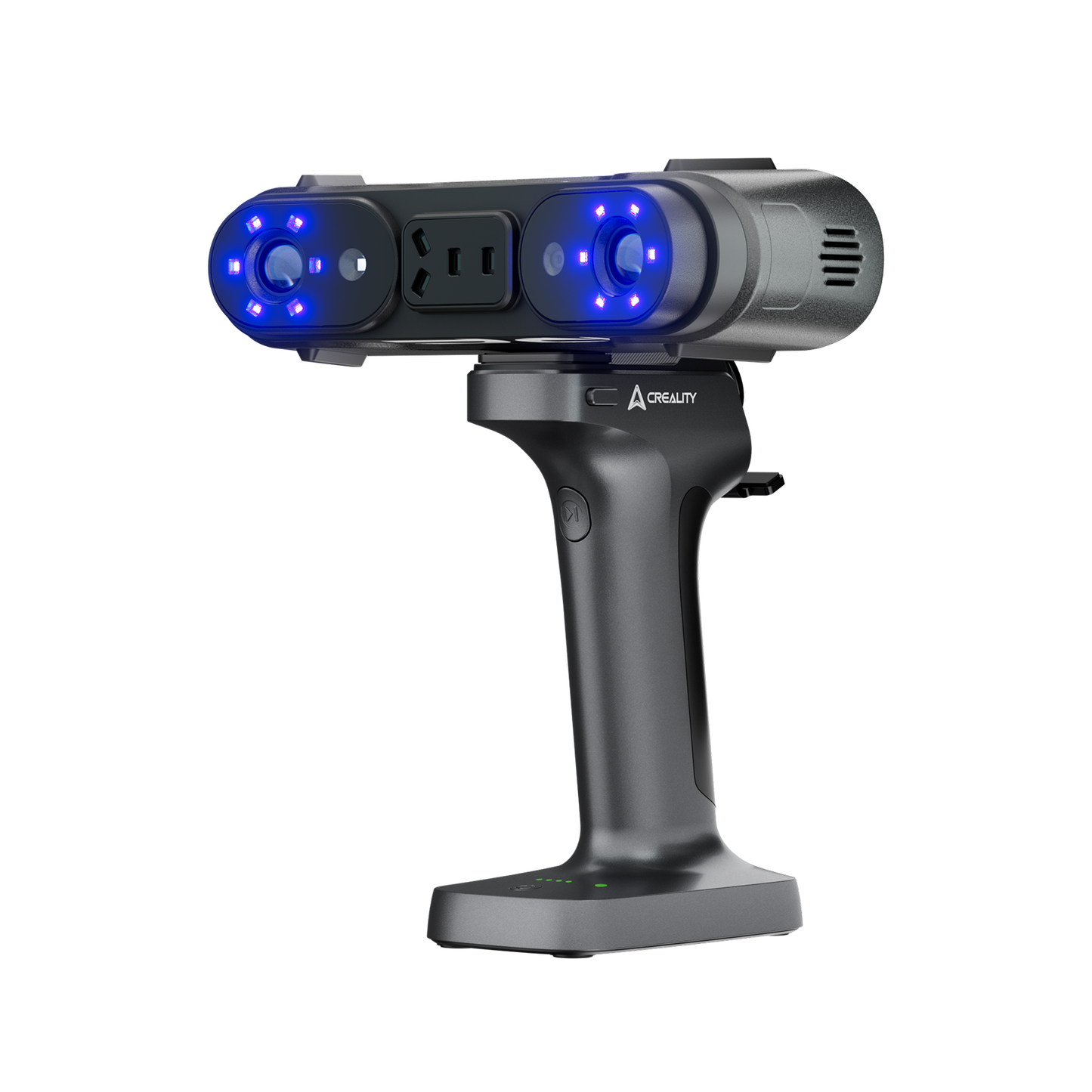

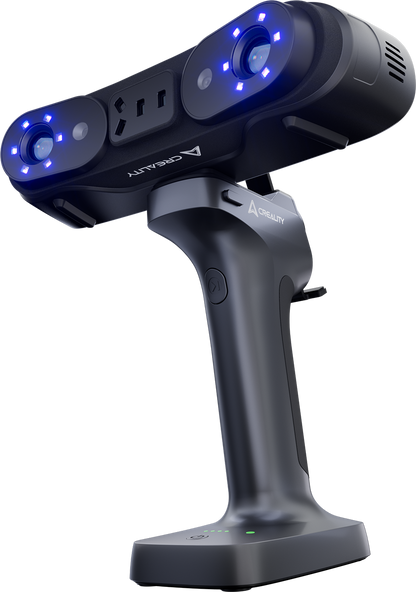

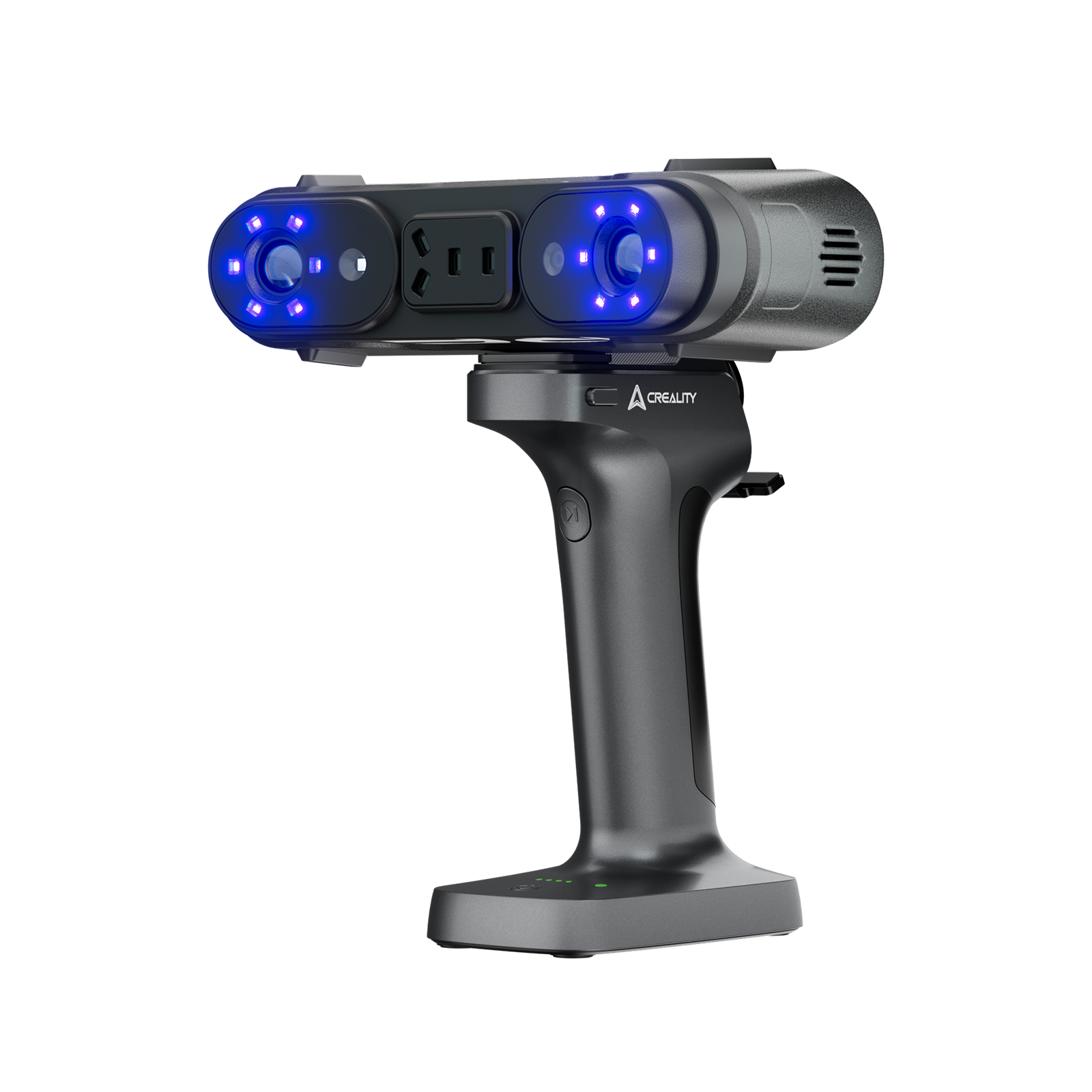

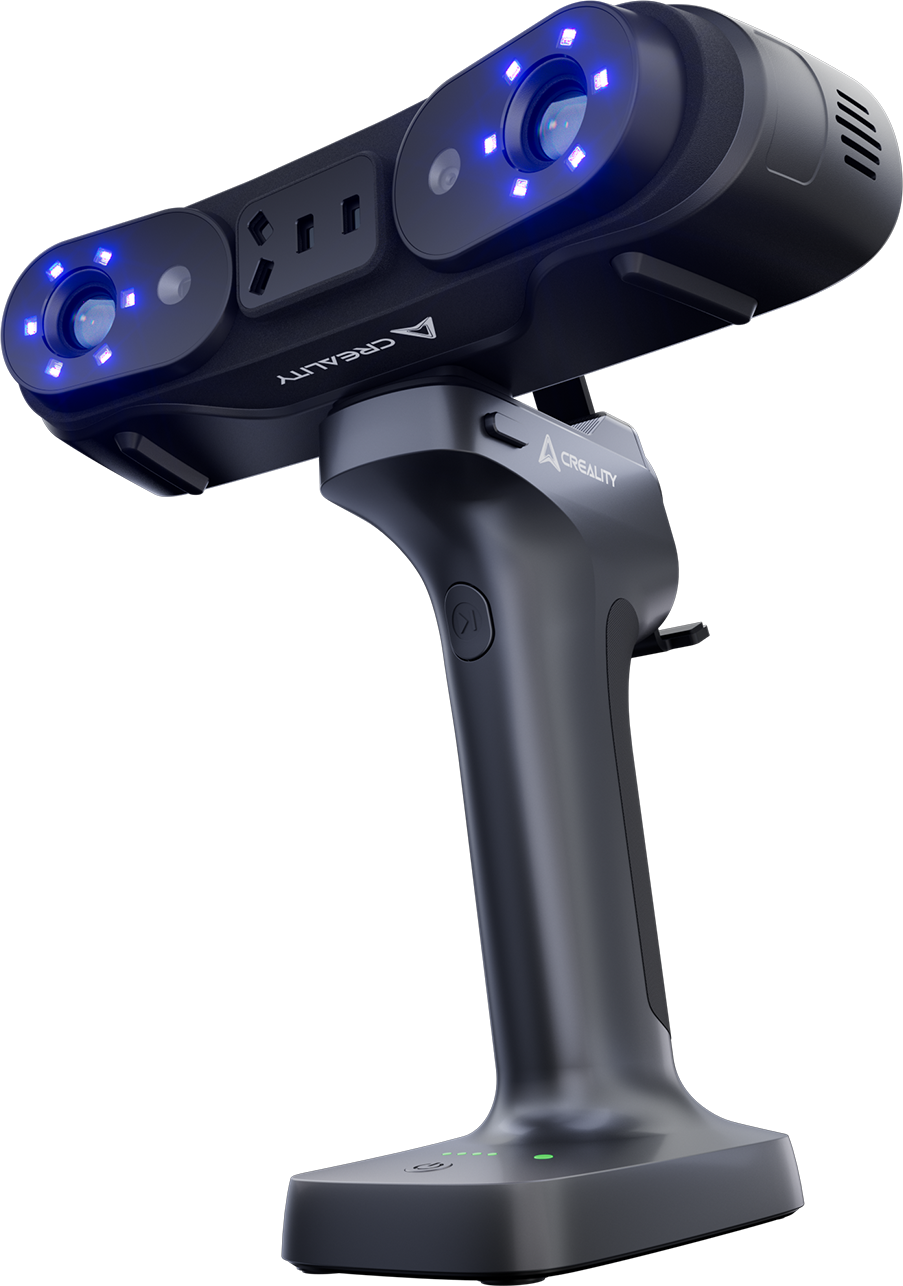

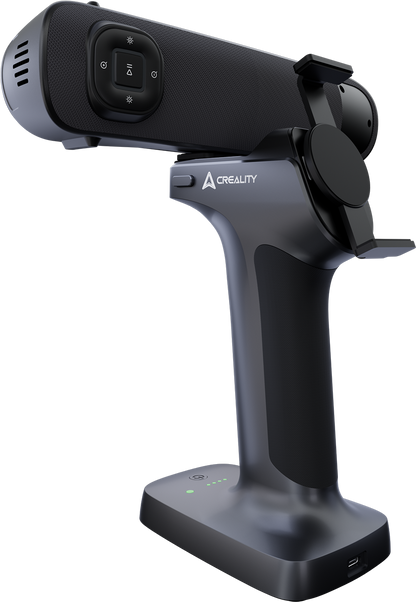

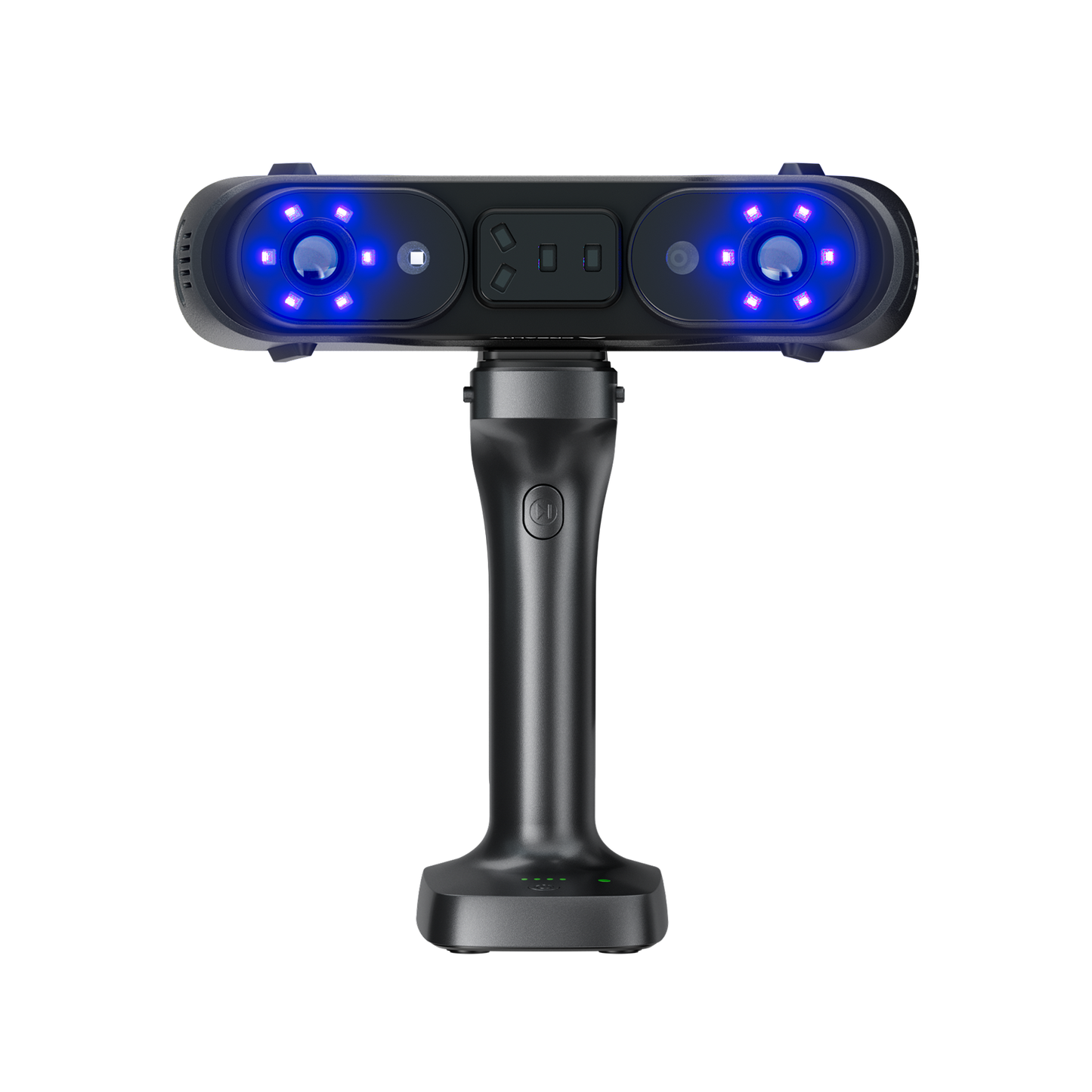

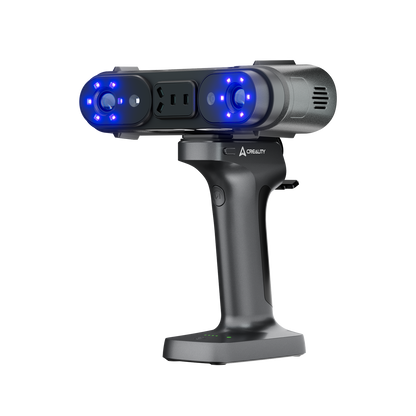

Creality Sermoon X1 Industrial 3D Scanner (0.02mm Accuracy)
0.02mm accuracy with hybrid blue-laser/NIR scanning, CNC-machined frame, and wireless operation.
Industrial Accuracy • Multi-Mode Laser + NIR • Mobile & Desktop Ready
Trusted by leading manufacturers, architectural teams, product designers, and university research labs worldwide, the Sermoon X1 brings industrial-grade scanning to a compact, easy-to-use system—perfect for engineering, prototyping, inspection, and digital archiving.
The Creality Sermoon X1 is built for professionals who demand absolute accuracy, flexible scanning modes, and dependable stability. With a CNC-machined monoblock body, integrated photogrammetry, and a hybrid multi-light scanning system, it’s engineered for designers, manufacturers, and quality-control teams who need consistent, inspection-grade results.
🎯 Trade-In Program available – Apply Now to save even more on your upgrade
0.02 mm accuracy + 0.04 mm/m volumetric precision
A built-in photogrammetry system with dual scale bars keeps large-object scans dimensionally stable and prevents cumulative drift. For projects where precision is non-negotiable, Sermoon X1 delivers reliable, repeatable measurements every time
The one-piece CNC body ensures:
Perfect for long scanning sessions or high-detail work where structural stability directly affects accuracy.
A powerful hybrid system combines blue lasers and NIR structured light for superior adaptability:
Reaches deep cavities and complex recesses with high accuracy.
High-efficiency mode for covering large objects quickly and cleanly.
Ideal for intricate geometries and fine surface textures.
Fast, marker-free scanning — great for sensitive or reflective materials.
Together, these modes cover objects from 5 mm³ components to 4000 mm³ large structures with dependable precision
Automatically corrects dimensional deviation during reconstruction.
Enhanced volumetric precision: 0.02 mm + 0.03 mm/m
The X1 continuously compensates for temperature shifts using:
Your scans stay stable even during extended, heavy-duty sessions
Scan indoors, outdoors, in workshops, or on-site.
A 2 MP RGB module plus Qualcomm ISP delivers:
Ideal for digital twins, visualization, and product design.
| Category | Specifications |
|---|---|
| Scan Modes | Single Blue Line, 7 Parallel Blue Lines, 34 Cross Blue Lines, NIR Structured Light |
| Device Size | 216 × 74 × 51 mm |
| Weight | 530 g |
| Accuracy | Up to 0.02 mm (laser modes) • Up to 0.05 mm (NIR) |
| Volumetric Accuracy | 0.02 mm + 0.04 mm/m (standard) • 0.02 mm + 0.03 mm/m (with scale bars) |
| Scan Rate | 84,000 pts/s (Single Line) • 756,000 pts/s (7 Lines) • 1,734,000 pts/s (34 Lines) • 5,000,000 pts/s (NIR) |
| 3D Resolution | 0.05–2 mm (laser) • 0.1–2 mm (NIR) |
| Frame Rate | Up to 90 fps (single line) • 85 fps (parallel lines) • 30 fps (cross lines) |
| Minimum Scan Volume | 5 × 5 × 5 mm (laser) • 150 × 150 × 150 mm (NIR) |
| Single-Image Capture Area | 217×167 mm @200 mm • 325×323 mm @300 mm • 434×349 mm @400 mm • 542×463 mm @500 mm • 650×531 mm @600 mm |
| NIR Capture Area | 650×531 mm @600 mm • 1300×935 mm @1200 mm |
| Working Distance | 200–600 mm (single & 34 cross) • 150–400 mm (7 parallel) • 170–1200 mm (NIR) |
| Color Capture | Supported (2 MP RGB + Qualcomm ISP + integrated lighting) |
| Alignment Modes | Marker • Global Marker • Geometry • Texture |
| Illumination | 12 white LEDs (colors) • 12 blue LEDs (marker detection) |
| Outdoor Operation | <100,000 lux (single & cross line) • <50,000 lux (parallel lines) • <30,000 lux (NIR) |
| Laser Class | Class II |
| Calibration Board | High-Precision Glass Calibration Board |
| OS Support | Windows • macOS |
| PC Requirements | Windows: i7-Gen10 + Nvidia 8GB + 32GB RAM (recommended) • i7-Gen7 + Nvidia 6GB + 16GB RAM (minimum) • macOS: M1/M2/M3/M4 + 16GB RAM |
| Operating Temp | –10°C to 40°C |
| Operating Humidity | 10–90% RH |
