Bambu Lab toolhead camera for H2 Series, 1080p

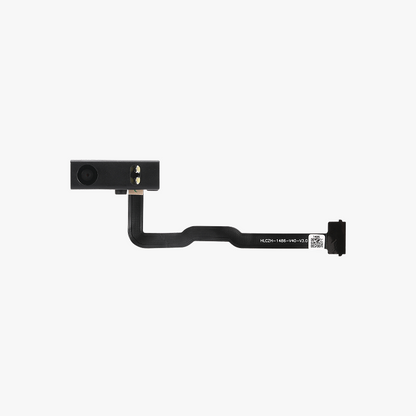

Bambu Lab Toolhead Camera for H2 Series (1080p) - Official Replacement

H2S & H2S LASER
$29.99
Skip to product information
Bambu Lab toolhead camera for H2 Series, 1080p
  • Bambu Lab toolhead camera for H2 Series, 1080p
Bambu Lab Toolhead Camera for H2 Series (1080p) - Official Replacement

Bambu Lab Toolhead Camera for H2 Series (1080p) - Official Replacement

$29.99
SKU 33891 MPN CAM009

Confirmed fit

  • H2S

Shopping for a different printer? Browse parts by model →

Printer

Sold out. Get an email when it's back.

We'll send one email when this exact option is restocked. No spam.

  • Free Shipping Over $50 · flat rates from $4.99 on $25+
  • Easy Returns 30 days from delivery
  • Ready to Ship Most in-stock orders ship the same business day

Don’t treat your printer like a blind machine. The Bambu Lab H2 Series Toolhead Camera is a high-precision optical module mounted cleanly on the right side of the print head. Running at 1080p / 30fps, this isn’t just an ordinary viewing device for monitoring your first layers from your couch—it acts as a critical visual sensor driving your machine's automated calibration and AI safety loops.

By capturing hyper-focused footage directly at the nozzle tip, this optical sensor enables real-time motion accuracy calibration, automatic nozzle offset adjustments, and smart matrix/QR code reading for build plates and laser pads.

Choose Your Machine Variant

Because the H2 Series shares the same core high-resolution camera architecture, the electronic sensor remains identical across versions. However, the physical mounting hardware differs depending on your machine generation. Select your layout from the dropdown menu to ensure you get the exact matching retention screws for a hassle-free drop-in replacement:

  • H2S / H2S Laser Edition: Includes the factory-spec camera module paired with a 2-piece set of BT2-8 installation screws.

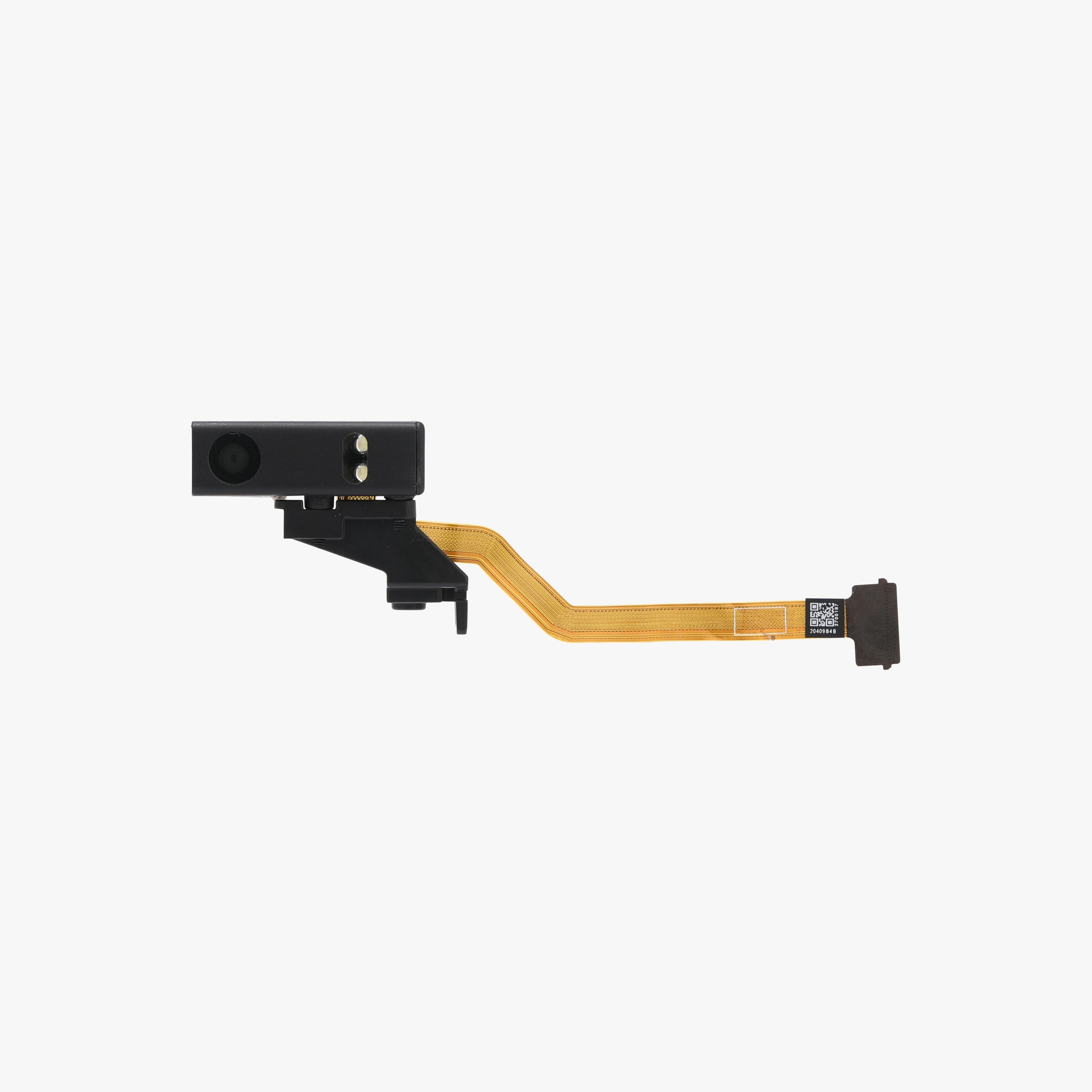

  • H2D / H2D Pro / H2C Edition: Includes the factory-spec camera module paired with a 2-piece set of M2-5 installation screws.

Core Highlights

  • 1080p High-Definition Telemetry: Captures crisp 1080p video at 30fps for pristine real-time remote monitoring and automated, cinematic time-lapse creation.
  • Automated Calibration Engine: Natively communicates with your printer’s core algorithms to evaluate motion paths and help calculate perfect micro-vibration offsets.
  • Smart QR & Matrix Recognition: Automatically scans build plate parameters and laser pad sheets to prevent configuration mismatches before the toolhead commits to a job.
  • Flawless First Layers: Assists in calculating microscopic nozzle heights and dynamic Z-offsets, completely removing manual guesswork from your workflow.

Real-World Maker Tips

  • The Hardware Mix-Up Warning: The camera sensor block itself is completely cross-compatible across the entire H2 line. However, the frame thread pitches are unique. Do not attempt to force a BT2-8 screw into an M2 thread block or vice-versa. Doing so will instantly strip out the aluminum toolhead mounting tabs, turning a quick 2-minute camera swap into a major repair headache.
  • Lining Up the Lens: When seating the camera onto the right-hand alignment pegs, ensure the lens opening is clear of any stray filament strings or grease from your fingers. Give the lens a quick wipe with an alcohol pad before tightening down the screws to ensure the AI spaghetti-detection system has a crystal-clear field of view.

Technical Specifications

Parameter Specification
Resolution 1080p @ 30fps
Mounting Position Right Side (Toolhead Framework)
Core Materials Industrial Polymer, Optoelectronic Elements, Steel
Color Matte Black
Packaging Size 60 × 60 × 30 mm
Packaging Weight 16 g (0.016 kg)

What’s in the Box?

For H2S / H2S Laser Configuration:

  • 1× H2 Series Toolhead Camera Sensor Module
  • 2× BT2-8 Machine Mounting Screws

For H2D / H2D Pro / H2C Configuration:

  • 1× H2 Series Toolhead Camera Sensor Module
  • 2× M2-5 Machine Mounting Screws

About this product

What's the difference between the two variants listed?
The camera sensor module itself is identical across the whole H2 line, but the mounting screws differ: H2S and H2S Laser use a 2-piece BT2-8 screw set, while H2D, H2D Pro, and H2C use M2-5 screws. Select the variant matching your exact printer so you get the correct screws — using the wrong thread pitch can strip your toolhead's aluminum mounting tabs.
Is this just a monitoring camera, or does it do more?
Much more — this toolhead-mounted camera drives real-time motion accuracy calibration, automatic nozzle offset adjustments, and smart QR/matrix code reading for build plates and laser pads, in addition to standard 1080p/30fps livestream and timelapse. It functions as a visual sensor for automated calibration, not just a webcam.
I have an H2D — can I use the H2S screws if that's all I have on hand?
No — don't mix screw types. The H2S/H2S Laser variant ships with BT2-8 screws and the H2D/H2D Pro/H2C variant ships with M2-5 screws, and forcing the wrong thread pitch into the mounting block will strip the aluminum tabs on your toolhead, turning a simple swap into a bigger repair. Order the correct variant so the included screws match your machine.
Any installation tips to avoid damaging the AI detection accuracy?
Yes — before tightening the mounting screws, wipe the lens with an alcohol pad to clear any stray filament strings or fingerprint grease, since a smudged lens can degrade the AI spaghetti-detection system's field of view. Seat the camera on the right-hand alignment pegs first, then tighten evenly rather than forcing one side down.
My nozzle offset calibration is failing — could the camera be the cause?
Yes — since this camera feeds the automated nozzle-height and Z-offset calibration system, a dirty lens, a loose mount, or a failed sensor can all cause calibration errors that look like a mechanical problem. Check lens cleanliness and mounting security first; if calibration failures persist with a clean, secure camera, the sensor module itself may need replacing.
Why is the H2D/H2C variant priced higher than the H2S variant?
The camera sensor is the same 1080p/30fps module across both — the price difference reflects the included mounting hardware kit for each machine, not a different sensor spec. Order based on which screw set your specific model needs (BT2-8 for H2S/H2S Laser, M2-5 for H2D/H2D Pro/H2C) rather than assuming the pricier option is a better camera.
