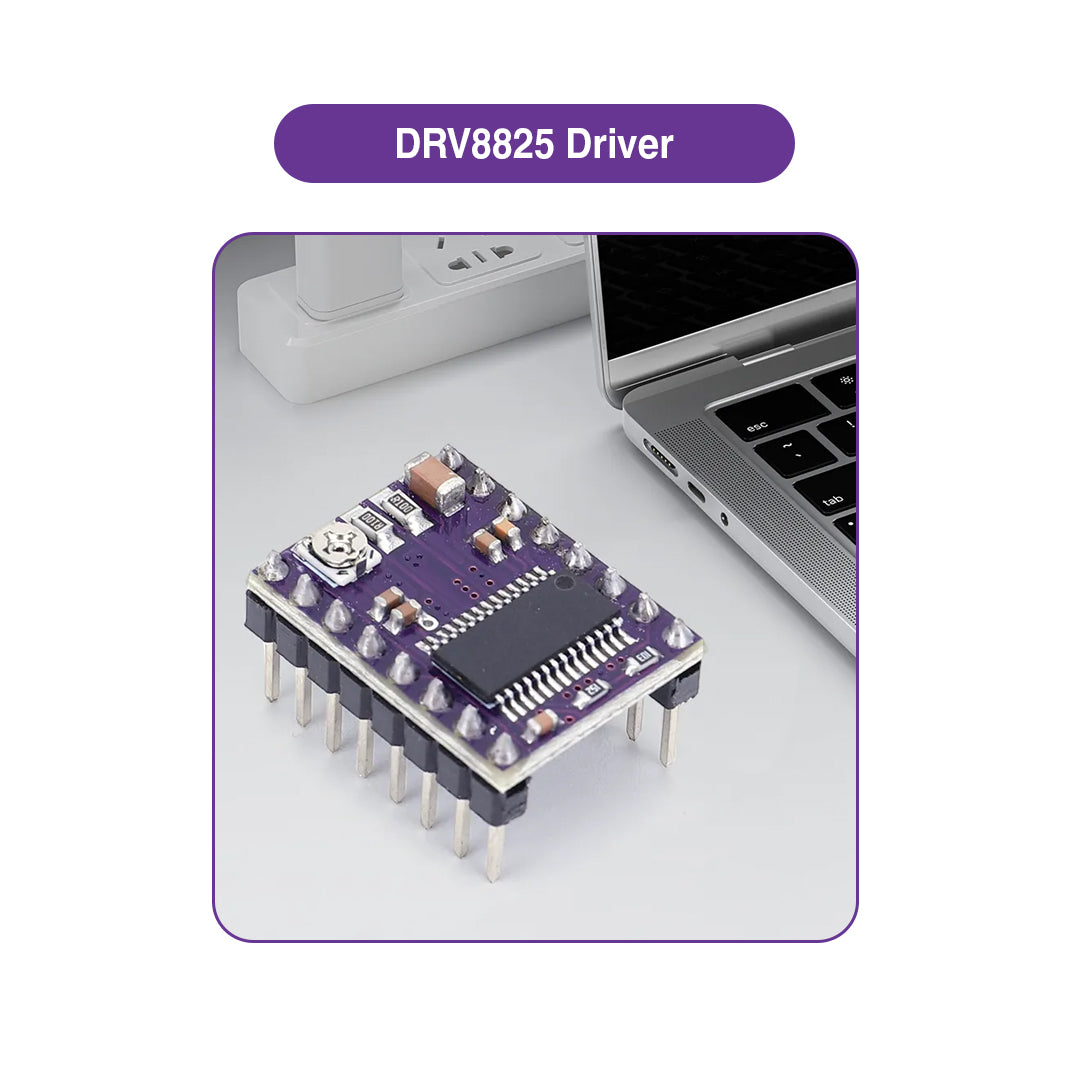

DRV8825 Driver with 6 Adjustable Step Modes
Optimize the precision and control of your 3D printer, CNC machine, or robotics project with the DRV8825 Driver. This high-performance stepper motor driver offers six different adjustable step modes, enabling you...
Optimize the precision and control of your 3D printer, CNC machine, or robotics project with the DRV8825 Driver. This high-performance stepper motor driver offers six different adjustable step modes, enabling you to fine-tune the motion of your stepper motors for smoother and more accurate performance. With its compact design and wide voltage range, it’s a versatile solution for enhancing your machine's capabilities.
Features
- 6 Step Modes: Supports full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step for precise motor control.
- Wide Voltage Range: Operates from 8.2V to 45V, ideal for a variety of motor setups.
- High Current Handling: Provides up to 2.5A peak current per coil (with sufficient cooling).
- Thermal Protection: Built-in over-temperature and over-current protection ensures safe operation.
- Compact Design: Fits seamlessly into existing electronics, including RAMPS and other control boards.
Key Requirements for Compatibility
- The printer’s control board must support stepper motor driver modules with a standard pin layout (e.g., RAMPS 1.4, MKS Gen, or similar boards).
- Compatible with stepper motors operating within the voltage range of 8.2V to 45V.
- Intended for use with NEMA 17 stepper motors or similar motors.
Applications
The DRV8825 Driver is ideal for upgrading or maintaining 3D printers, CNC machines, and other devices that use stepper motors. Its advanced step control allows for smoother, quieter operation and greater precision in movement.
