The 12864KBA V1.3 LCD Display Controller is a high-resolution full graphic smart controller designed to enhance user interaction and machine control in 3D printing applications. With a 128 x 64 dot matrix LCD, intuitive navigation, and SD card support, it offers a complete standalone printing experience. Ideal for RAMPS 1.4-based RepRap 3D printers, it provides clear visual feedback and easy access to printing functions.
Key Features
-
High-Resolution Display:
- Crisp and clear 128 x 64 pixel dot matrix LCD for real-time monitoring of print status, temperatures, and menu options.
- Optimized for detailed information visualization.
-
Compact Active Display Area:

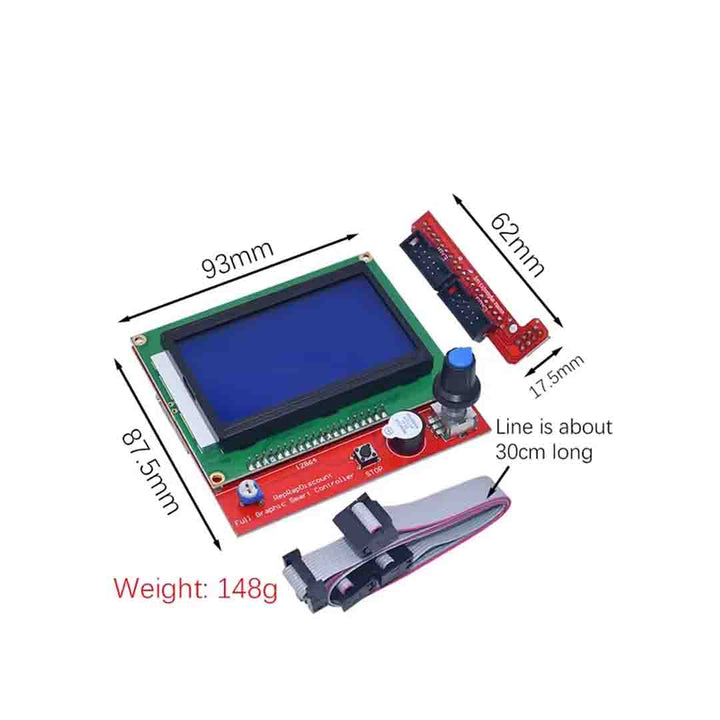

- 1.6" x 1.0" screen size, offering efficient use of space while ensuring all key details are easily readable.
-

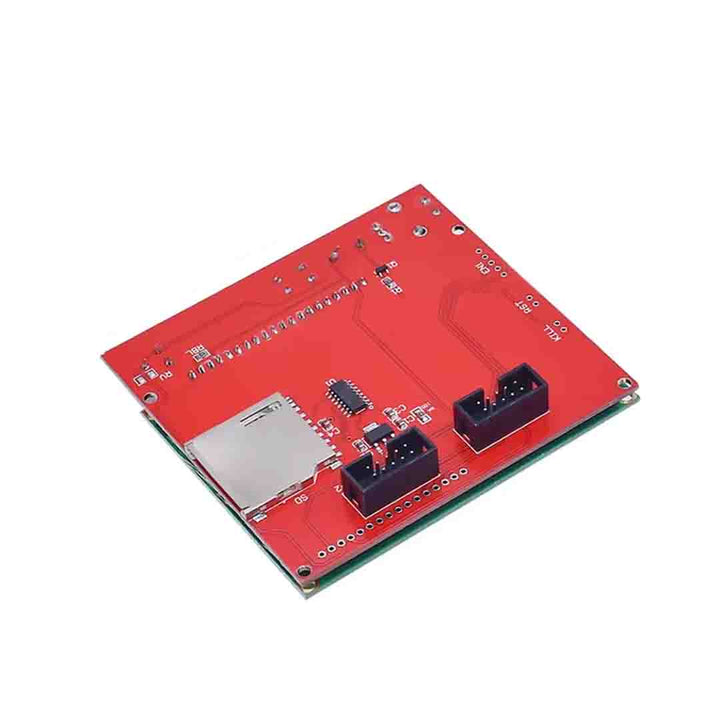

Integrated SD Card Slot:
- Available in side-load or front-load configurations for flexible and convenient print file access.
- Enables standalone printing without the need for a computer connection.
-
User-Friendly Navigation:
- Features a rotary encoder with push button for intuitive menu selection and control.
- Includes an additional general-purpose push button and an integrated beeper for auditory feedback, enhancing user experience.
-
Plug-and-Play Compatibility:
- Fully compatible with RAMPS 1.4 boards and other RepRap electronics using EXP1 and EXP2 dual 10-pin connectors.
- Works seamlessly with Arduino Mega 2560, making it suitable for various DIY 3D printer builds.
Technical Specifications
- Display Type: Dot matrix LCD
- Resolution: 128 x 64 pixels
- Active Display Area: 1.6" x 1.0"
- SD Card Slot: Side-load or front-load options
- Control Interface: Rotary encoder with push button, general-purpose push button, beeper
- Physical Interface: Dual 10-pin connectors (EXP1 and EXP2)
- Compatibility: RAMPS 1.4, RepRap 3D printers, Arduino Mega 2560

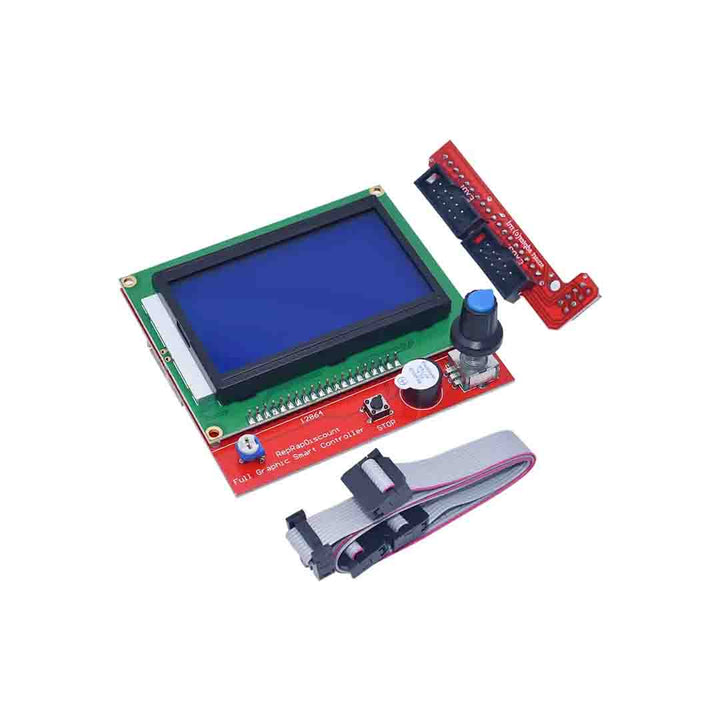

Package Includes
- 1x 12864KBA V1.3 Full Graphic Smart Controller
- 1x Smart Adapter Board for RAMPS 1.4
- 2x Flat Ribbon Cables (EXP1 & EXP2)
- 1x Rotary Encoder with Push Button
Why Choose the 12864KBA V1.3 Controller?
This LCD display controller provides an affordable and efficient solution for enhancing 3D printing workflows. With its high compatibility, intuitive controls, and robust design, it is the perfect addition for users looking to optimize their RAMPS-based 3D printers.
