A major improvement for 3D printers is the incorporation of an auto-leveling sensor. These sensors make bed leveling easier, which can be a tedious and mistake-prone task for both novices and experienced makers. Yet, with a plethora of choices like BLTouch, CR Touch, and more, it can be difficult to determine which sensor best suits your printer and requirements. In this guide, we'll examine the leading auto-leveling sensors, clarify their functionality, and assist you in selecting the ideal choice for your 3D printer.

Why Auto-Leveling Sensors Matter

Auto-leveling sensors improve the accuracy of your printer’s first layer, which is critical for successful prints. Key benefits include:

• Time Savings: Automatically adjusts the print bed without requiring manual intervention.

• Improved Print Quality: Ensures consistent layer adhesion across the bed.

• User-Friendly: Reduces frustration for beginners by eliminating the need for manual leveling.

• Adaptability: Adjusts for minor imperfections in the print bed surface.

How Auto-Leveling Sensors Work

Auto-leveling sensors detect the distance between the printer’s nozzle and the print bed. They measure multiple points on the bed and create a mesh map that the printer’s firmware uses to adjust for uneven surfaces during printing. Sensors can work using different technologies:

• Proximity Sensors: Use magnetic or capacitive fields to detect the bed surface.

• Mechanical Sensors: Use physical contact with the bed to measure distances.

• Optical Sensors: Rely on light reflection to detect surfaces.

Overview of Popular Auto-Leveling Sensors

1. BLTouch

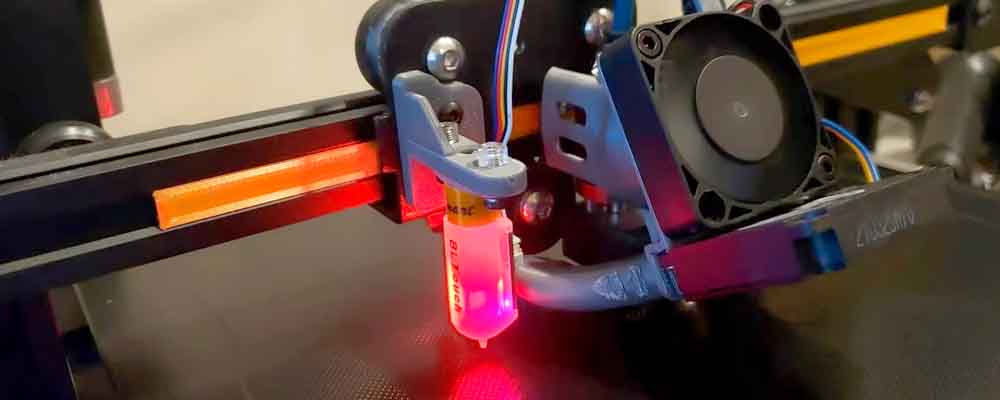

The BLTouch is one of the most popular and versatile auto-leveling sensors. It uses a small retractable pin to physically touch the bed surface and measure distances accurately.

Key Features:

• Works with a variety of bed materials (glass, metal, PEI, etc.).

• High precision due to physical contact measurement.

• Compatible with most 3D printers running Marlin or other common firmware.

Pros:

• Reliable and accurate.

• Easy to find guides and community support.

Cons:

• Requires wiring and firmware setup, which can be intimidating for beginners.

• Moving parts may wear out over time.

2. CR Touch

The CR Touch, developed by Creality, is similar to the BLTouch but uses a metal probe for durability.

Key Features:

• Designed for Creality printers but compatible with others.

• Metal probe offers increased lifespan.

• Simple plug-and-play installation for Creality machines.

Pros:

• Durable and reliable.

• Easier setup for Creality users.

Cons:

• Slightly less versatile than the BLTouch for non-Creality printers.

3. Proximity Sensors

These sensors use magnetic or capacitive fields to detect the bed surface without physical contact.

Key Features:

• Non-contact detection minimizes wear.

• Often found in industrial-grade printers.

Pros:

• No moving parts, ensuring longevity.

• Quiet operation.

Cons:

• Limited to metal or certain material types.

• Less precise than mechanical sensors on uneven surfaces.

4. Inductive Sensors

Inductive sensors are a type of proximity sensor that specifically detects metal surfaces.

Key Features:

• Best for printers with metal build plates.

• Affordable and widely available.

Pros:

• Durable and cost-effective.

• Simple design with no moving parts.

Cons:

• Not compatible with non-metal beds.

• Limited precision on textured or coated surfaces.

Choosing the Right Auto-Leveling Sensor for Your Printer

To select the best sensor for your needs, consider the following factors:

1. Bed Material

• For metal beds, inductive sensors or BLTouch/CR Touch are ideal.

• For glass or composite beds, opt for BLTouch or CR Touch due to their compatibility with various surfaces.

2. Printer Compatibility

• Check if the sensor is compatible with your printer’s mainboard and firmware. BLTouch and CR Touch have broad compatibility, while some sensors may require additional modifications.

3. Ease of Installation

• Beginners may prefer plug-and-play options like the CR Touch.

• Advanced users comfortable with wiring and firmware updates can choose more versatile options like the BLTouch.

4. Durability and Maintenance

• If you’re looking for longevity, opt for sensors with no moving parts (e.g., proximity or inductive sensors).

• BLTouch and CR Touch are durable but may require occasional maintenance.

5. Budget

• Inductive sensors are typically more affordable, while BLTouch and CR Touch are mid-range options offering better accuracy and versatility.

Step-by-Step Installation Guide

1. Preparation

• Gather tools: Screwdriver, Allen wrench, cable ties.

• Download the correct firmware for your printer and sensor.

2. Mounting the Sensor

• Attach the sensor to the printer’s print head using the provided bracket.

• Ensure the sensor’s probe or detection field is at the correct height relative to the nozzle.

3. Connecting the Wires

• Follow the manufacturer’s wiring diagram to connect the sensor to the printer’s mainboard.

• Double-check connections to avoid short circuits.

4. Firmware Configuration

• Update your printer’s firmware to support auto-leveling.

• Configure settings like probe offset and bed leveling points.

5. Calibration

• Perform a test print to ensure proper leveling.

• Adjust Z-offset settings as needed for an optimal first layer.

Tips for Optimizing Auto-Leveling Performance

• Clean the Bed Surface: Dust and debris can affect sensor accuracy.

• Regularly Check Probe Condition: For mechanical sensors, ensure the probe retracts and deploys smoothly.

• Secure Wiring: Use cable ties to prevent wires from interfering with the print head.

• Perform Manual Checks: Occasionally verify the bed’s level manually to ensure consistent results.

• Update Firmware: Keep your printer’s firmware up to date to benefit from bug fixes and new features.

Conclusion

Auto-leveling sensors significantly enhance the 3D printing experience by increasing accessibility and reliability for users of all skill levels. Options like the adaptable BLTouch and the robust CR Touch offer varying benefits depending on your printer's configuration, bed material, and individual needs. It is crucial to comprehend the advantages and drawbacks of each type of sensor to achieve perfect first layers. By selecting the most suitable sensor, you can improve the quality of your prints and streamline your 3D printing process, ultimately leading to better outcomes and a more enjoyable experience.
