Bambu Lab Hardened Steel Nozzle: Which Filaments Actually Require One?

On Bambu Lab printers the dividing line is abrasiveness, not material type. If the filament contains fiber, filler or hard particles, use a hardened steel nozzle. If it is a plain polymer, stainless steel is enough and it is what most Bambu printers use. Bambu's P1 and X1 hotends are one piece, so "replacing the nozzle" there means replacing the hotend. This guide covers which filaments need which, why, and how to spot a worn nozzle.

In this article

• What nozzle does your Bambu Lab printer have?
• The hardened nozzle matrix: filament by filament
• Why abrasive filaments wear soft nozzles
• 0.4 mm or 0.6 mm for carbon fiber?
• How to tell a nozzle is worn
• Quick checklist
• FAQ

What nozzle does your Bambu Lab printer have?

Bambu uses stainless steel rather than brass for its standard nozzles. Stainless handles a wider temperature range, but it is still soft compared with hardened steel and it wears when fiber-filled filament runs through it.

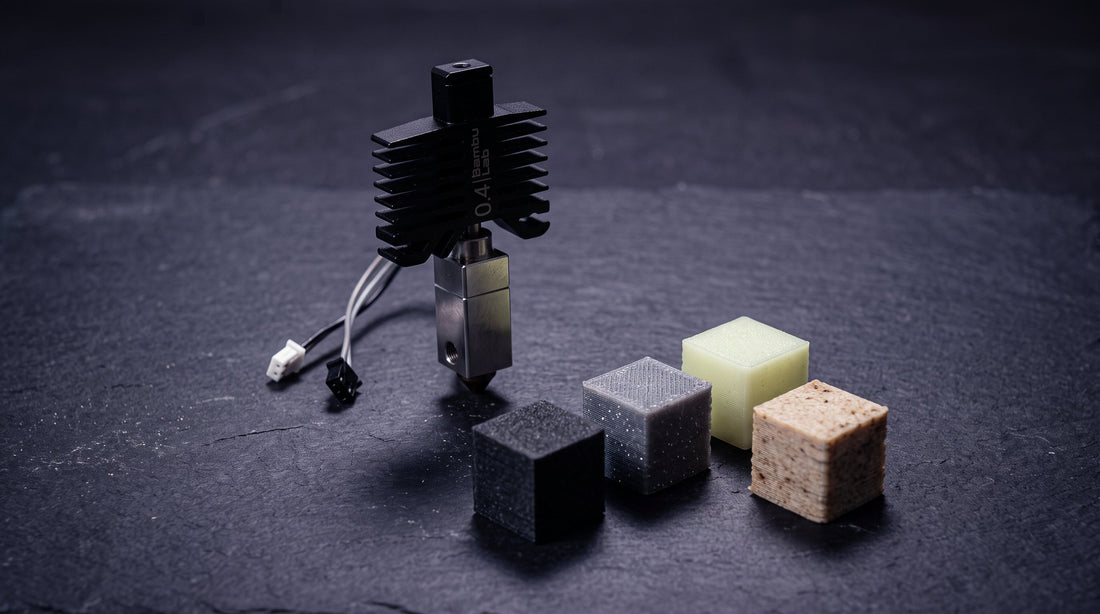

According to Bambu's nozzle overview, the P1S ships with a 0.4 mm stainless steel nozzle and the X1C with a 0.4 mm hardened steel nozzle, and A Series printers ship with a 0.4 mm stainless steel nozzle. Hardened steel hotends are an optional upgrade for any printer that arrives with stainless. Heat-dissipation fins tell them apart: gray for stainless, black for hardened steel.

The hardened nozzle matrix: filament by filament

Use this as a quick reference. The rating follows the filler's hardness and how it behaves in the melt zone, not the base polymer.

Why abrasive filaments wear soft nozzles

Carbon and glass fiber wear a nozzle by abrasion, not chemistry. The base polymer melts, but the chopped fibers stay solid and drag along the bore wall under pressure, removing a little metal on every meter.

Over time the bore grows and loses its round shape. A 0.4 mm opening that has become larger no longer matches the diameter in the slicer, so the printer under-extrudes, parts drift oversize, top surfaces get rough and bridging gets worse. How fast this happens depends on the filament, the fiber content and the nozzle, so there is no single spool count. Plan on a stainless nozzle degrading noticeably after a few kilograms of CF or GF filament, and a hardened one lasting many times longer.

0.4 mm or 0.6 mm for carbon fiber?

A larger bore gives fibers more clearance, which lowers clog risk and reduces flow restriction. For most CF and GF filaments, 0.6 mm hardened steel is the safe starting point.

The exception is Bambu's own PLA-CF and PETG-CF, which Bambu approves for a 0.4 mm hardened steel nozzle. You get finer detail at 0.4 mm, with a higher clog risk if you switch to another brand's CF filament. The rule that follows: Bambu CF filament in PLA or PETG, 0.4 mm is fine; anything else, start at 0.6 mm. Hotend options and sizes are in the Bambu Lab nozzle guide.

How to tell a nozzle is worn

A worn nozzle does not announce itself, and the symptoms look like calibration problems:

• Dimensional creep. Horizontal dimensions come out 0.1 to 0.3 mm over spec while flow settings have not changed.
• Rougher top surfaces. Ironing gets worse and overhangs that used to print cleanly start to droop.
• Under-extrusion at settings that used to work. If you keep raising flow to get the same result, the bore may have grown.
• Visual check. With good light, look at the tip. Wear shows up as an oval or teardrop instead of a clean circle.

Quick checklist

You do not need hardened steel if you only print:

• PLA (Basic, Matte, Silk+)
• PETG or PETG-HF
• Unfilled ABS or ASA
• TPU
• Unfilled nylon

You need hardened steel before the first spool of:

• Anything with "-CF" or "-GF" in the name
• Glow-in-the-dark PLA or PETG
• Metal-fill (copper, bronze, steel, iron)
• High-fill wood composites at volume

The damage from running abrasive filament through stainless is cumulative, not immediate. By the time prints visibly drift, the nozzle is already past correction. A $17.99 hardened hotend costs less than one spool of PA6-CF ($42.99). If you also print for speed, see High Flow vs. Standard Flow, and for full material properties the Bambu Lab filament guide.

FAQ

Does my Bambu Lab printer come with a hardened steel nozzle?

The X1C does: it ships with a 0.4 mm hardened steel nozzle. The P1P, P1S and A Series printers ship with stainless steel. Hardened steel hotends are sold separately.

Do the P1/X1 hotends fit an X1E?

They are not listed for the X1E. Bambu sells dedicated X1E hotend assemblies, so confirm the part number for your X1E before ordering.

Can I print carbon fiber with a stainless nozzle?

It will print, but the nozzle wears and parts drift out of spec. Bambu lists hardened steel as required for CF and GF materials, so treat stainless as a short-term test, not a setup.

0.4 mm or 0.6 mm hardened steel for carbon fiber?

0.6 mm is the safe default for CF and GF. Bambu's own PLA-CF and PETG-CF are approved for 0.4 mm.

Does glow-in-the-dark PLA need a hardened nozzle?

Yes. The phosphorescent particles are very hard and wear stainless faster than many carbon fiber filaments.

Do wood-fill or silk PLA need hardened steel?

Silk+ has no abrasive filler and is fine on stainless. Wood-fill is mildly abrasive, so hardened steel extends nozzle life if you print it regularly. Metal-fill should always use hardened steel.
